nxtomomill h52nx (bliss-HDF5)#

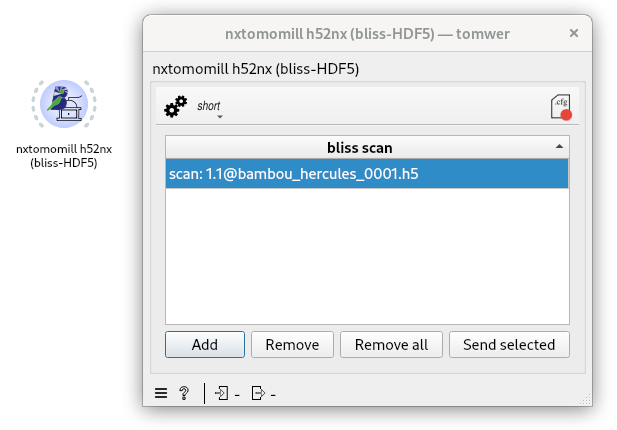

../../../_images/nxtomomill_h52nx.png

Behavior#

This widget allows loading data from bliss-HDF5 and converting them to Nexus (NXTomo) format, still using the HDF5 format.

Note

The datalistener will also make a direct call to nxtomomill.

Providing a configuration file for conversion#

Today there is two widgets that can call nxtomomill: the datalistener and the nxtomomill widgets.

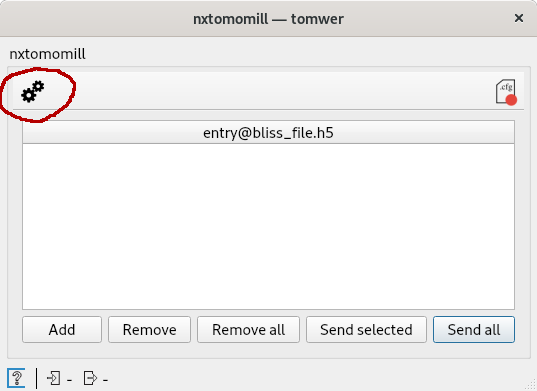

You can define this from the configuration menu

../../../_images/nxtomomill_widget.png

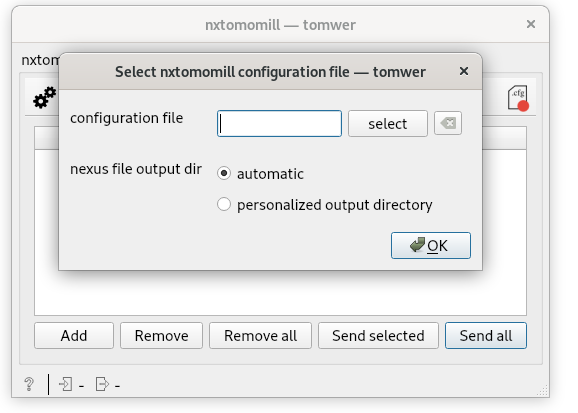

Then select a configuration file

../../../_images/nxtomomill_widget_set_config_file.png

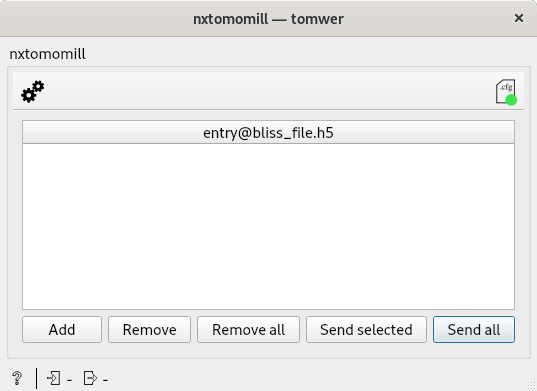

When a configuration file is active then we notify it by a “green point”

../../../_images/nxtomomill_once_set.png

Note

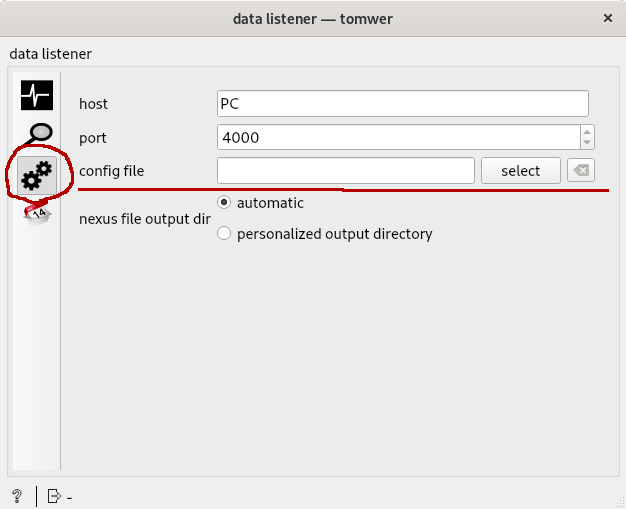

You can do the same from the data listener as well:

../../../_images/data_listener_config_file.png
