Overwrite rotation angles#

In the case you want to edit rotation angles of an NXtomo you can force those values from a python script.

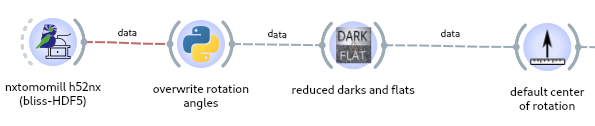

Usually the best would be to overwrite them just after the conversion to an NXtomo like:

../../_images/workflow_overwrite.png

The following is an example on how to overwrite rotation angles (thanks to marta):

import numpy as np
import h5py
from nxtomo.application.nxtomo import NXtomo
from tomwer.core.scan.nxtomoscan import NXtomoScan

scan = in_data

# the scan contains some dark and flat. angles.txt only contains the projection angles
angles = [0]*41
angles.extend(
    np.loadtxt("/data/visitor/ih.../angles.txt")
)

new_entry=f"{scan.entry}_edited"

nx_tomo = NXtomo().load(scan.master_file,scan.entry)
nx_tomo.sample.rotation_angle=angles
nx_tomo.save(scan.master_file, new_entry)

out_data = NXtomoScan(scan=scan.master_file,entry=new_entry)
