tomwer 2.0 highlights#

Extracting Nabu reconstruction parameters#

nabu reconstruction parameters have been moved to a specific widget (Nabu Settings).

Note

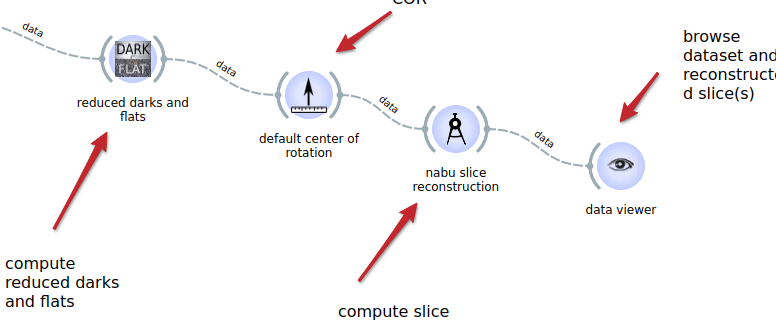

For a workflow that used to be defined previously as:

../_images/old_nabu_slices_pap.png

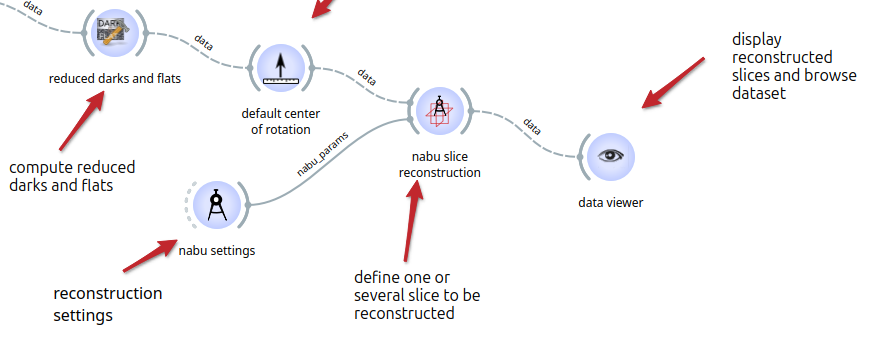

We now need to add the ‘Nabu Settings’ widget.

../_images/new_nabu_slices_pap.png

Warning

As a consequence the existing workflows defined in version 1.0 are not more compatible with version 2.0.

Hint

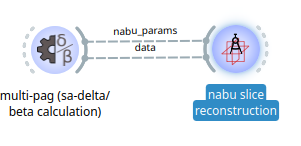

The multi-pag` widget propagates Nabu reconstruction parameters to downstream components. All output values match the input values, except for the delta/beta value, which reflect the value currently selected via the user interface.

../_images/multi_pag.png

Splitting the Reduced Darks and flats reduction & copy in two separated widgets#

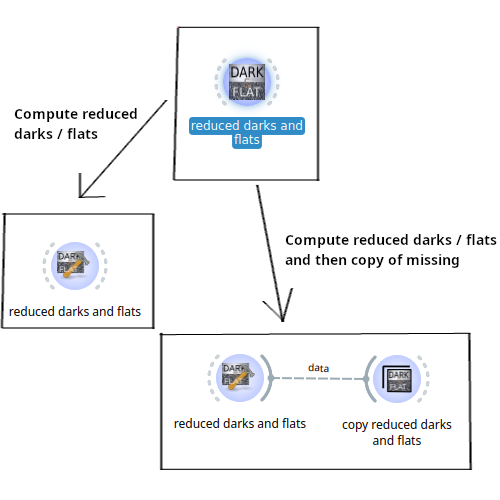

To clarify the workflow and simplify operations for copying darks and flats, we have extracted this functionality into a dedicated task.

Note

  • tomwer 1.0 automatically copied missing darks/flats, sometimes silently. If raw data contained darks/flats frames, they were processed before any copying. Copying only occurred if reduced frames didn’t already exist.

  • tomwer 2.0 keeps the same behavior, but now you must explicitly enable copying by adding the widget.

../_images/split_reduced_frames_copy.png

Changed default cast / converted volume location#

The default location has moved from inside reconstructed_volumes` to the same parent level.”

Ewoksification#

Enforce ewoksification. Processing from ewoks-execute is now ‘assured’. See video: TODO TO ADD

Update working directory management#

Replace output options by using a single ‘path’ that can contains reserved keywords.

Removed deprecated widgets#

  • (old) volume viewer -> replaced by the new one introduced in the 1.6 version

  • Timer -> Moved to dedicated ‘project’ (ewoksnotify)

  • ‘data listener’ (using rpc) -> Replaced by the ‘bliss-data listener’ (using bliss-data)

  • ‘SinogramIntensityNormalization’ -> never used

Removed outdated applications#

  • ‘tomwer-stop-datalistener’ -> now using blissdata

  • ‘tomwer-intensity-normalization’ -> never used

Remove possibility to have loops#

Until now, due to legacy it was possible to create loops. Since we can retrieger from the ‘processview’ table this is no more required.
